Machine Specifications:
Max. Weight of Electrode (lbs) 22
Workpiece Weight (lbs)
440
Table dimensions (in) 11.80 x 15.75
Table Travel (in) X axis 11.80 - Y axis 9.84
Z axis slide travel (in)
9.85
3R spindle nose to table height (in) 10.50
Machining Current 50 A
Tank dimensions (in)
(Height x Length x Width)
7.08 x 23.62 x 15.75


 Sinker EDM

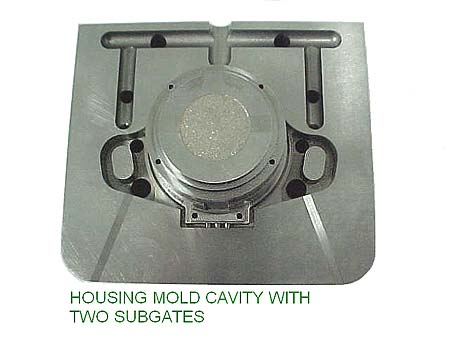

From a simple hex pocket to an intricate mold cavity, Northeast Tool and Die is well equipped to handle your Sinker EDM needs.

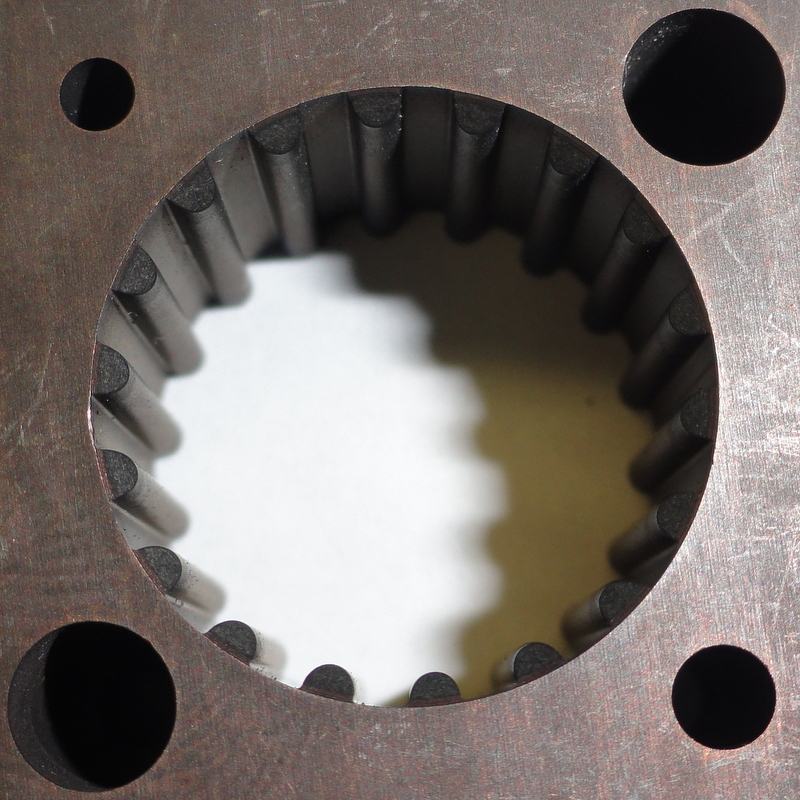

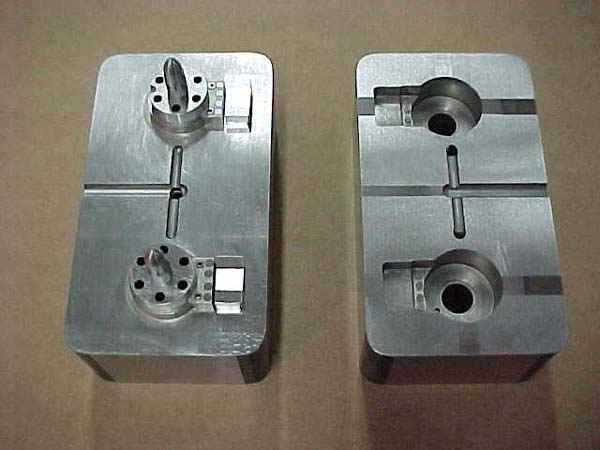

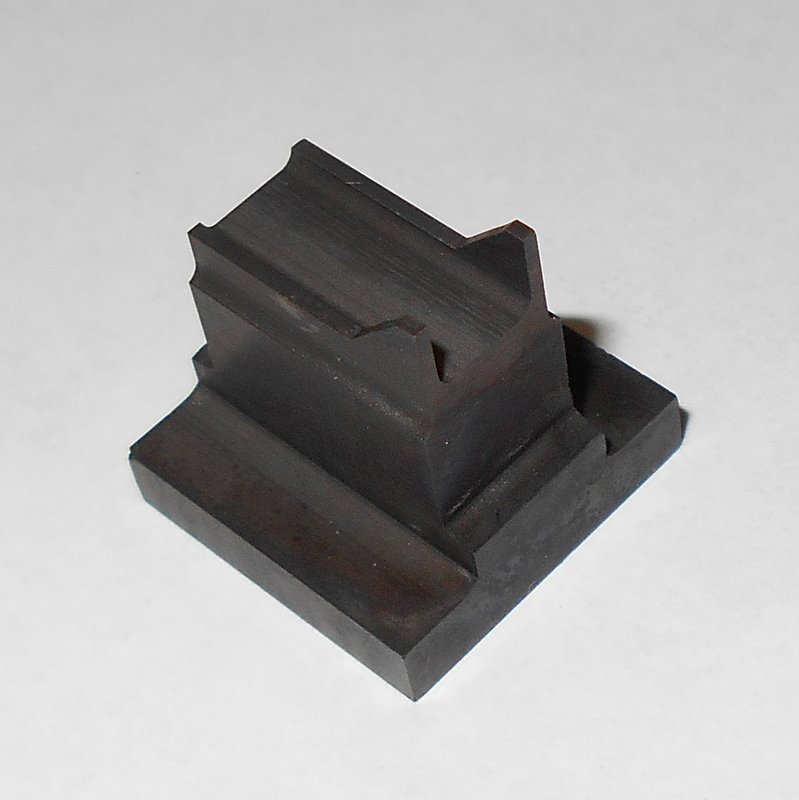

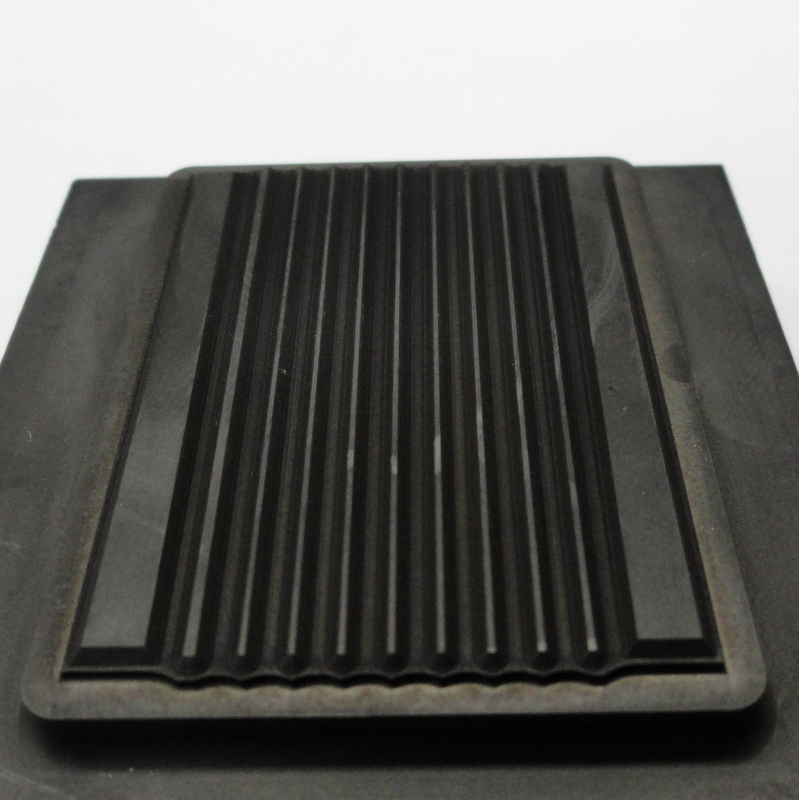

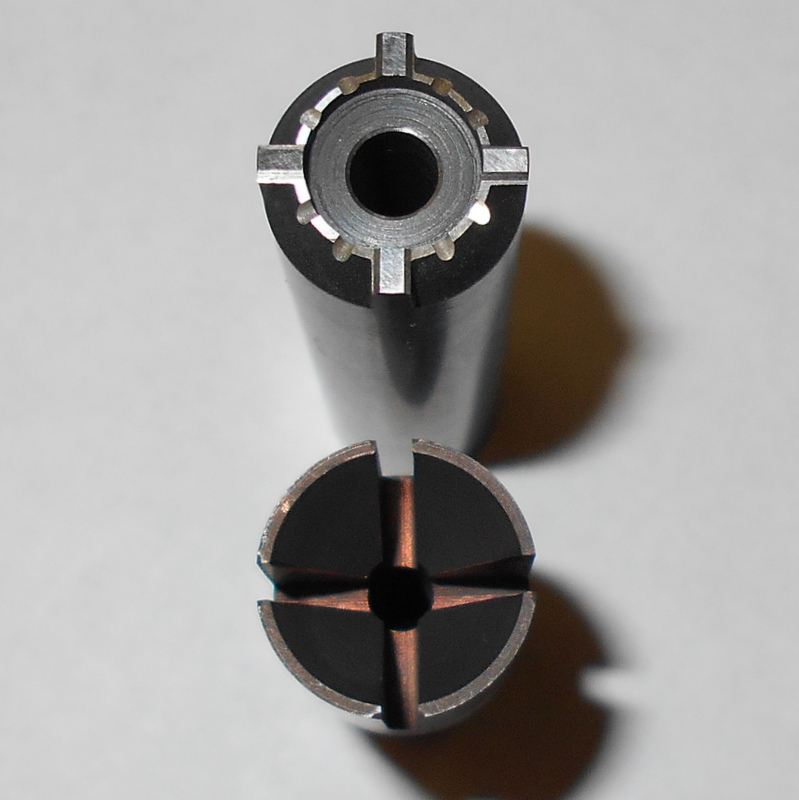

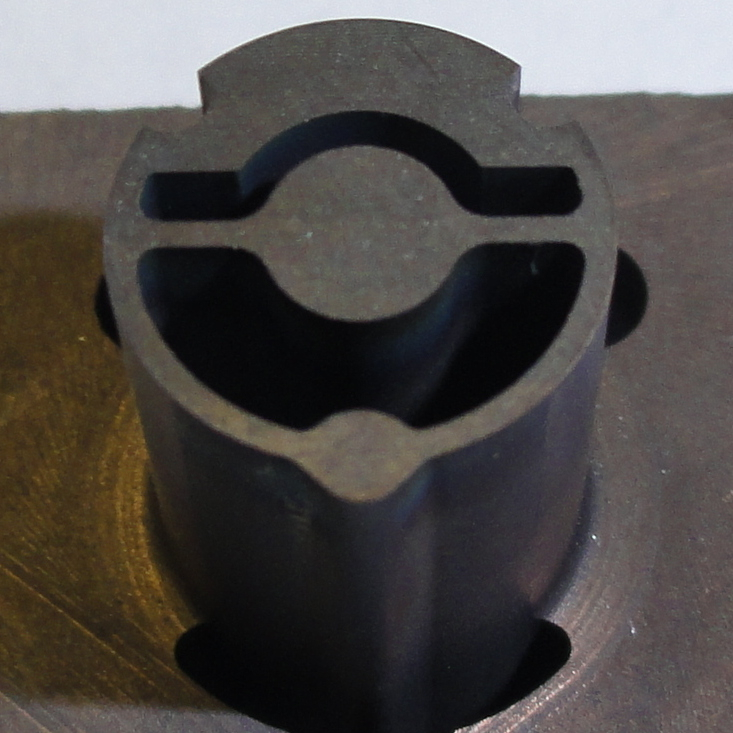

Sinker EDM was one of the principal processes used to produce these components.

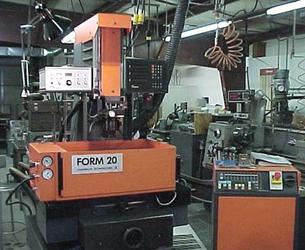

Charmilles Form 20
